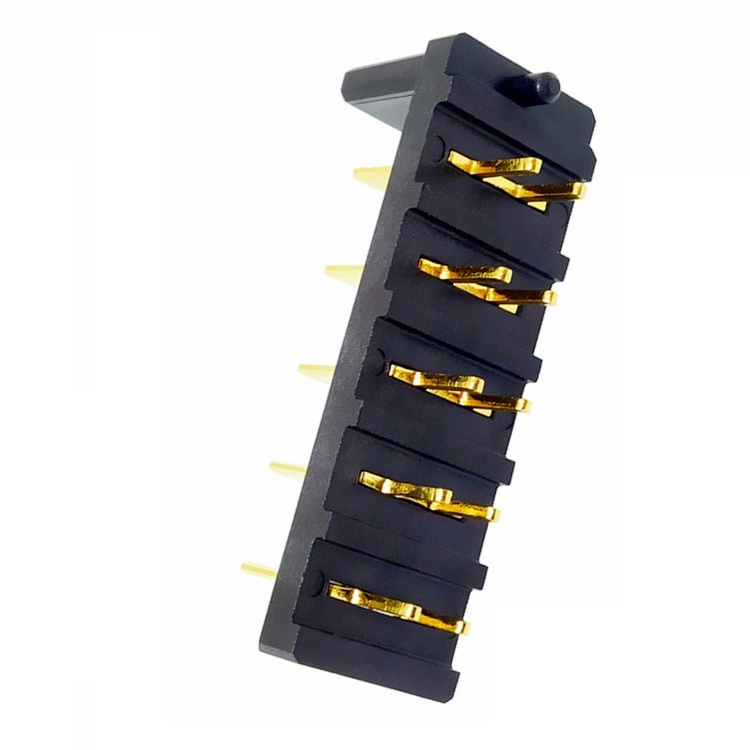

產品名稱：電池座  電池連接器  筆記本電池座 電池插座

品  牌：科斯達  KSDKG / KOSOD SWITCH

電池連接器產品參數：

電池連接器PIN數：2Pin-14pin

絕緣主體：Nylon 6T/9T（UL94V-0）

五金導體：磷銅C5191

表面鍍層：金在鎳/錫之上，鍍層厚度3U″

絕緣電阻：100M? Min

接觸電阻：30m? Max

額定電流：3A 5A 7A/PIN

瞬間電流：7A/PIN - 10A/PIN

額定電壓：12V  24V DC

工作溫度：-30℃~105℃

耐電 壓：500V /1000V

耐高 溫：260℃/5S

鹽霧試驗：48H

工作壽命：5000cycles

適用范圍：工控設備電腦筆記本、計算機設備、汽車工業、小家電吸塵器、無人機、智能鎖、行車記錄儀、數碼相機及各類鋰電池保護板。

Product name: battery jack, batteryconnector, laptop battery holder, battery socket, battery interface

Brand: KSDKG / KOSOD SWITCH

Battery connector product parameters:

Battery connector PIN number: 2Pin-14pin

Insulation main body: Nylon 6T/9T (UL94V-0)

Hardware conductor: phosphor copper C5191

Surface coating: gold on top of nickel/tin,the thickness of the coating is 3U″

Insulation resistance: 100MΩ Min

Contact resistance: 30mΩ Max

Rated current: 3A 5A 7A/PIN

Instantaneous current: 7A/PIN-10A/PIN

Rated voltage: 12V 24V DC

Working temperature: -30℃~105℃

Withstand voltage: 500V / 1000V

High temperature resistance: 260℃/5S

Salt spray test: 48H

Working life: 5000cycles

Scope of application: industrial controlequipment, computer notebooks, computer equipment, automotive industry, smallhousehold appliances, vacuum cleaners, drones, smart locks, driving recorders,digital cameras and various lithium battery protection boards.
