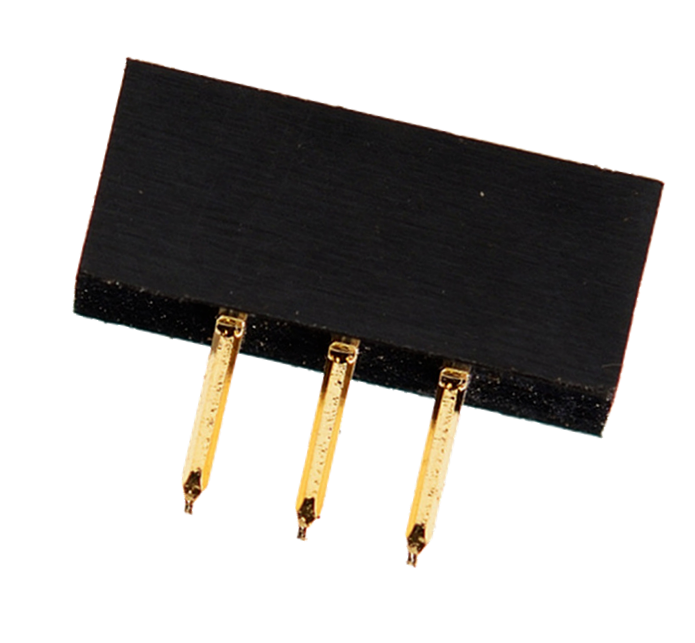

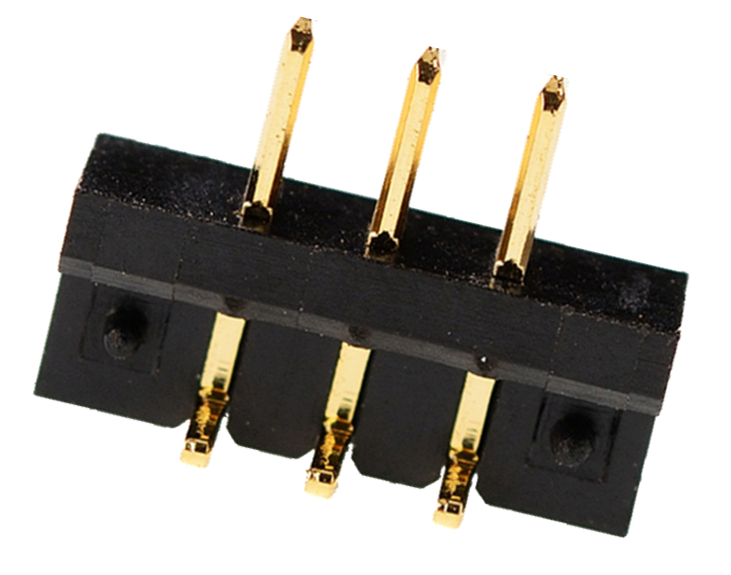

產品名稱：刀片連接器  筆記本刀片連接器
品  牌：科斯達開關  KSDKG / KOSOD SWITCH
刀片電池連接器產品參數：
筆記本刀片連接器PIN數：2Pin-12pin
絕緣主體：Nylon 6T/9T（UL94V-0）
五金導體：磷銅C5191
表面鍍層：金在鎳/錫之上，鍍層厚度3U″
絕緣電阻：100M? Min
接觸電阻：30m? Max
額定電流：3A 5A 7A/PIN
瞬間電流：7A/PIN - 10A/PIN
額定電壓：125V AC/Min
工作溫度：-30℃~105℃
耐 電 壓：500V
耐 高 溫：260℃/5S
鹽霧試驗：48H
工作壽命：5000cycles
刀片連接器適用范圍：工控設備 電腦筆記本、計算機設備、汽車工業、小家電吸塵器、無人機、智能鎖、行車記錄儀、數碼相機及各類鋰電池保護板。

Product name: Blade connector Notebook blade connector
Brand: KSDKG / KOSOD SWITCH
Blade battery connector product parameters:
Notebook blade connector PIN number: 2Pin-12pin
Insulation main body: Nylon 6T/9T (UL94V-0)
Hardware conductor: phosphor copper C5191
Surface coating: gold on top of nickel/tin, the thickness of the coating is 3U″
Insulation resistance: 100MΩ Min
Contact resistance: 30mΩ Max
Rated current: 3A 5A 7A/PIN
Instantaneous current: 7A/PIN-10A/PIN
Rated voltage: 125V AC/Min
Working temperature: -30℃~105℃
Withstand voltage: 500V
High temperature resistance: 260℃/5S
Salt spray test: 48H
Working life: 5000cycles
The scope of application of the blade connector: industrial control equipment, computer notebooks, computer equipment, automobile industry, small household appliances vacuum cleaners, drones, smart locks, driving recorders, digital cameras and various lithium battery protection boards
