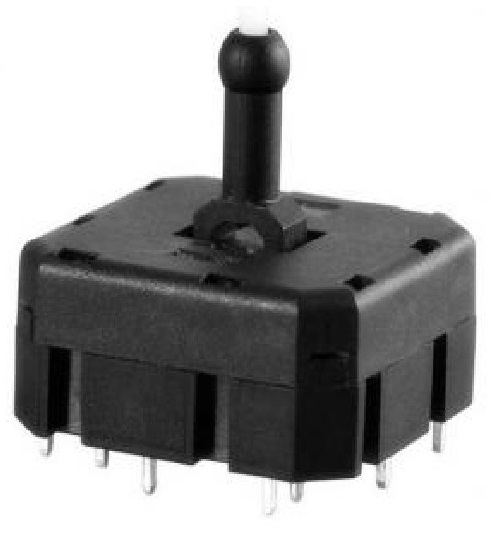

多功能五向開關  輕觸五向開關技術參數(shù)：

1. 額定負荷: DC 12V 100mA

2. 接觸阻抗: ≤100mΩMAX

3. 絕緣阻抗: ≥100MΩMIN

4. 耐焊溫度: 250±5°5s

5. 使用壽命: 200,000 cycles

6. 使用溫度: -25 ℃ to 85 ℃

7. 使用濕度: ≤85% RH

8. 操作力: 250/350/450 ± 35 gf

9.品牌 科斯達  KOSOD  KSDKG

MultiFunctional Five-way Switch Light Tact Five-way Switch technical parameters:

1. Rated load: DC 12V 100mA

2. Contact resistance: ≤100mΩMAX

3. Insulation resistance: ≥100MΩMIN

4. Solder resistance temperature: 250±5°5s

5. Service life: 200,000 cycles

6. Operating temperature: -25 ℃ to 85 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 250/350/450 ± 35 gf

9. Brand KOSOD KSDKG
