側按直鍵開關技術指標

1.定負荷: DC 12V 30V 0.3A  0.5A
2. 接觸阻抗: ≤50mΩ
3. 絕緣阻抗: ≥100mΩ DC500V
3. 耐焊溫度: 250±5°5s
5. 使用壽命: 10,000 cycles
6. 使用溫度: -25 ℃ to 80 ℃
7. 使用濕度: ≤85% RH
7. 操作力 : 160gf  可訂做
9.功能選擇:自鎖/無鎖
10.可配選按鍵帽
應用：汽車電器、工控設備、數(shù)碼產(chǎn)品、安防、電腦、通訊產(chǎn)品、家用電器、智能交通等。

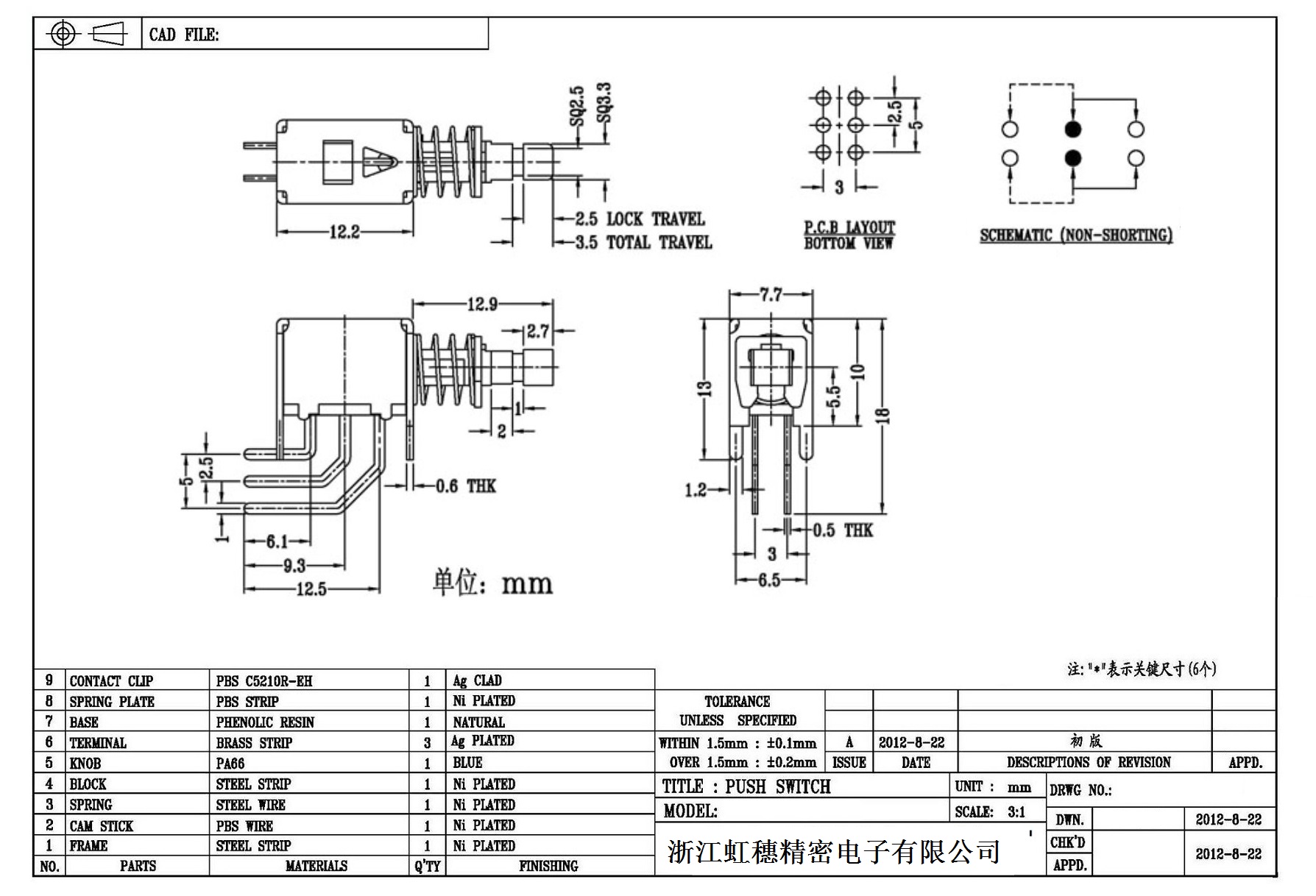

Technical parameters of mini puhs switch:
1. Rated load: DC 12V 30V 0.3A 0.5A
2. Contact impedance: ≤50mΩ
3. Insulation resistance: ≥100mΩ DC500V
4.  Soldering resistance temperature: 250±5°5s
5. Service life: 10,000 cycles
6.  Operating temperature: -25 ℃ to 80 ℃
7. Operating humidity: ≤85% RH
8. Operating force: 160gf
Application: automotive electrical appliances, industrialcontrol equipment, digital products, security, computers, communicationproducts, household appliances, intelligent transportation, etc.
